TTS SERIES
Tilting Test Bench

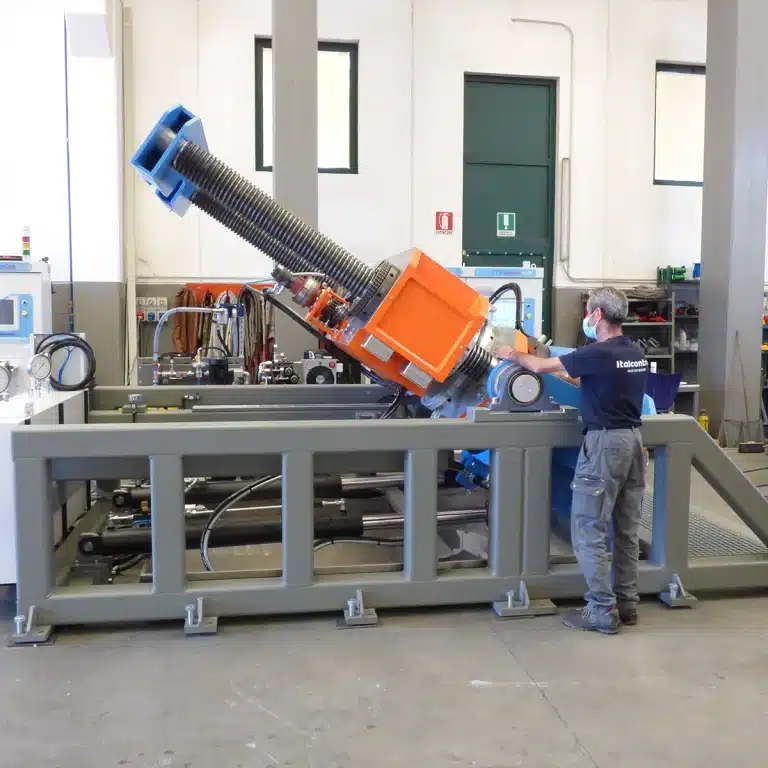

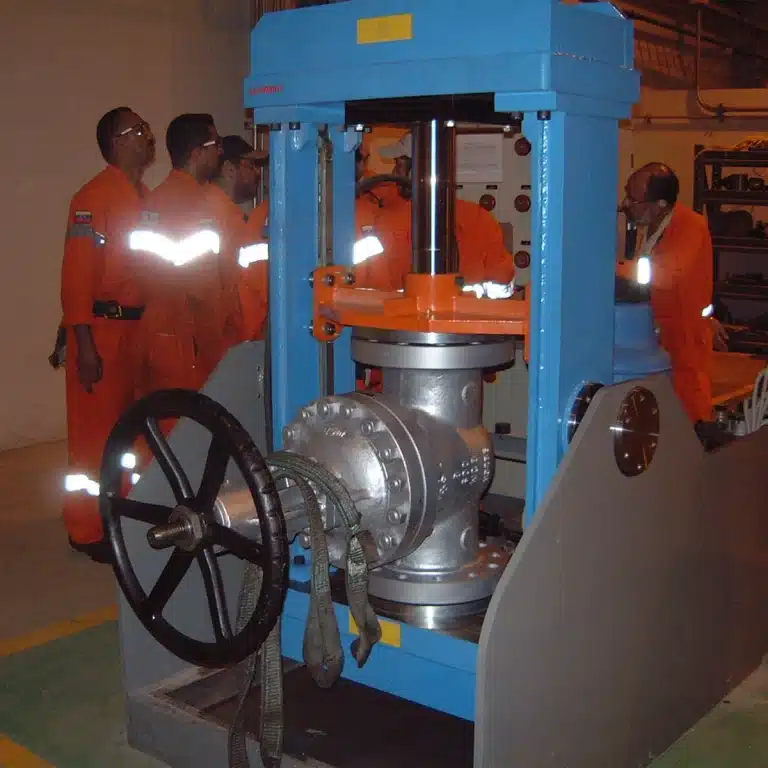

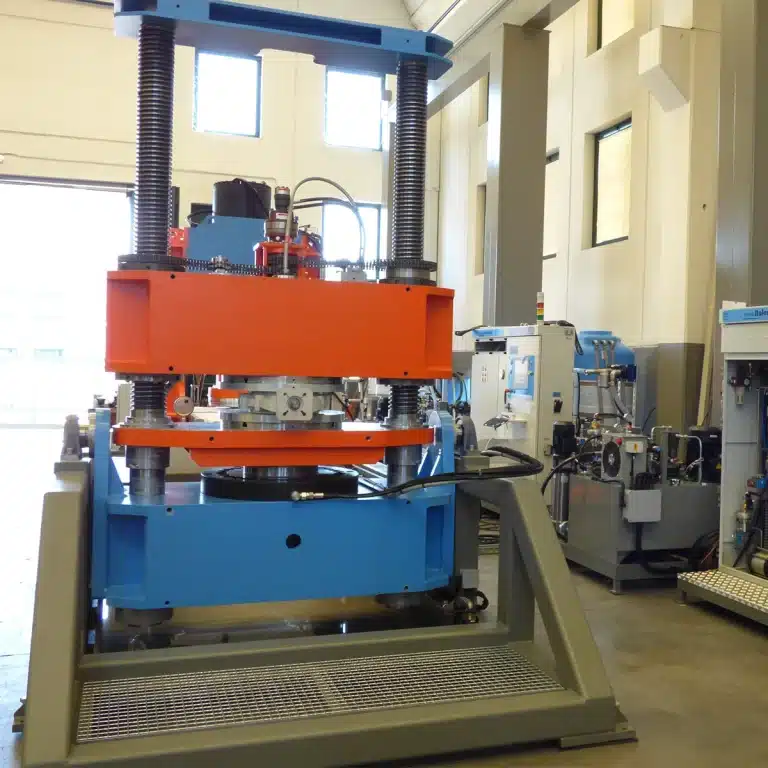

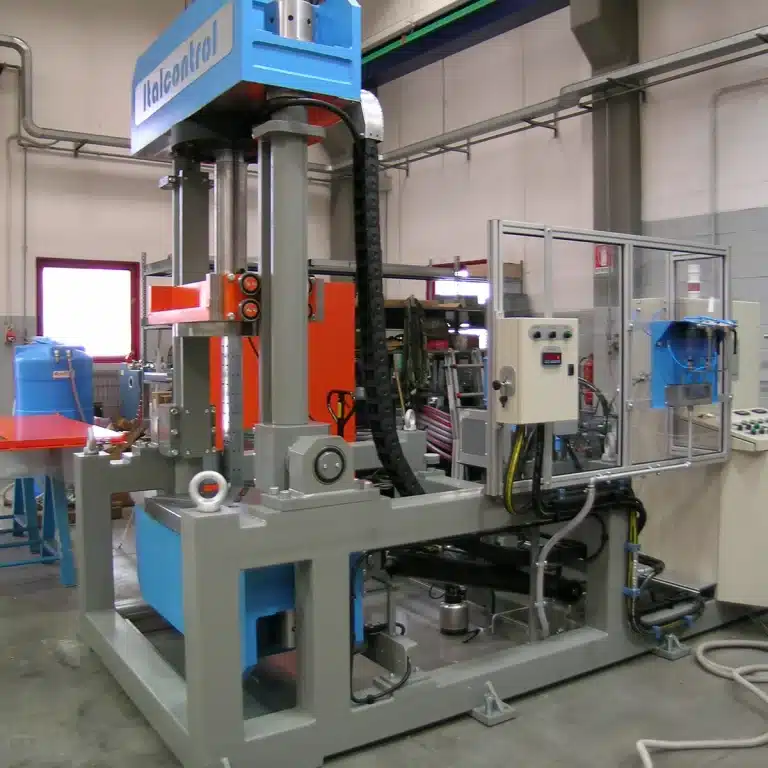

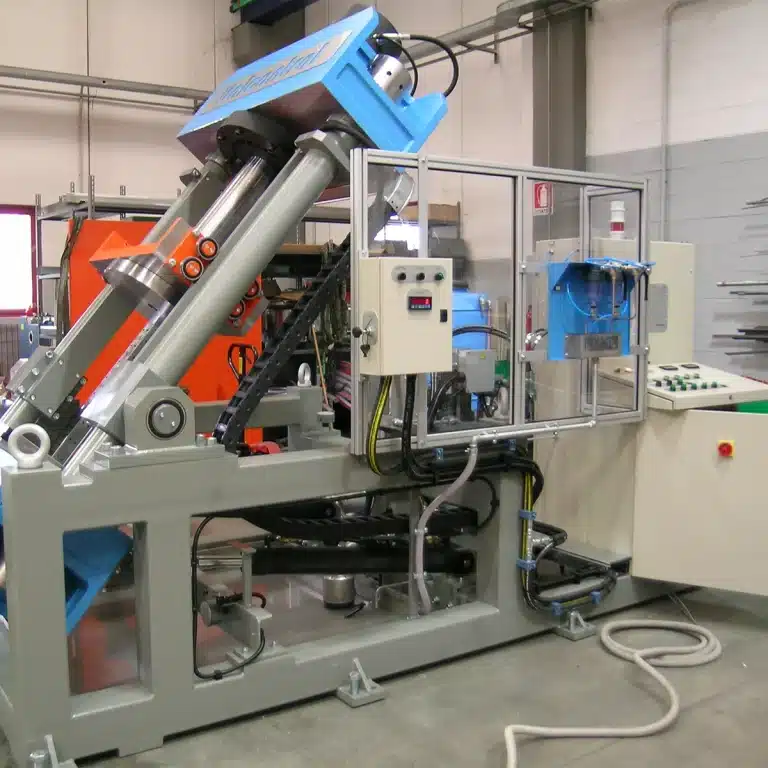

Series of test benches able to test the valve in horizontal, vertical or inclined (tilting) position to simulate the real work. In horizontal position it’s easier to place the valve into the test bench and it’s also possible to assembly some particulars as bellows, actuators, steering and so on.
We are ready to create your test bench.
TTS SERIES
Tilting Test Bench
- Valve range under pressure testing from 1/2” to 24”
- Maximum reaction force up to 600 tons
- Test according to API, ANSI, DIN, BS, ISO, EN
- Hydraulic pressure test up to 4000 bars
- Gas pressure test up to 2100 bars
- Cavity line (3rd injection line)
- ATEX conformity (optional)
- Analogical or electronic leakage measuring systems
- Operator protections compliant with EN 14121 standard
- Hydrogen testing (optional)
