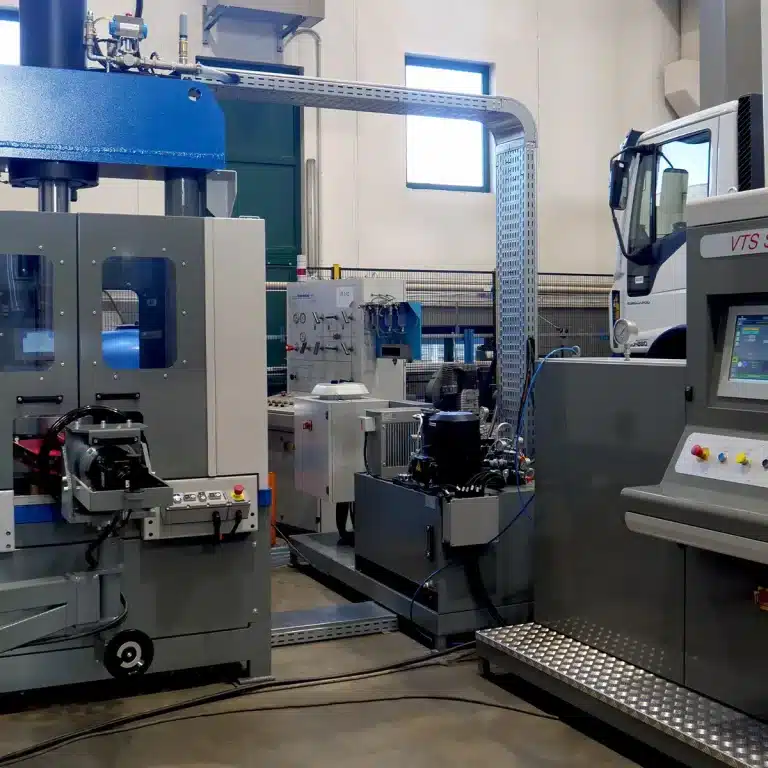

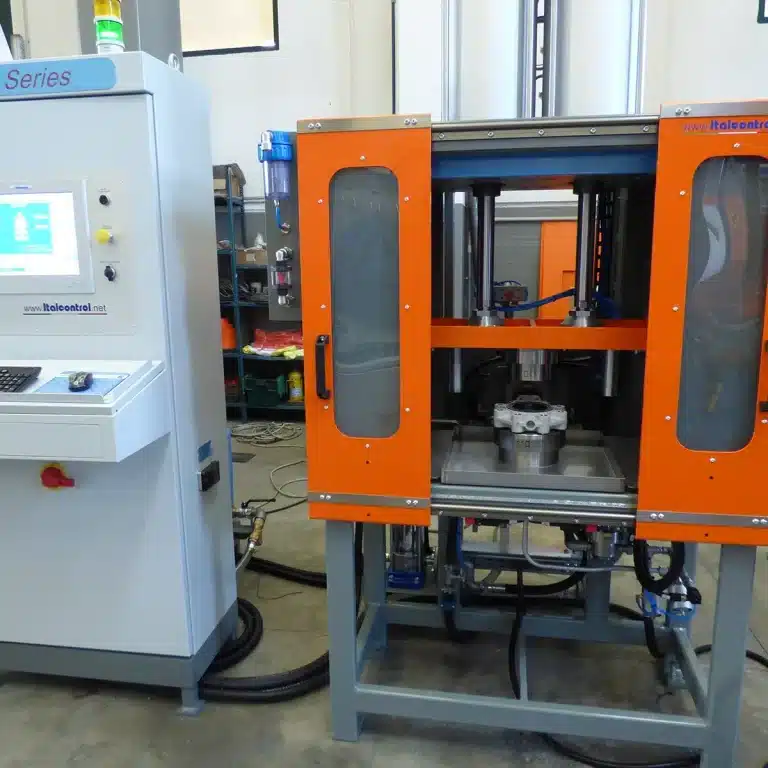

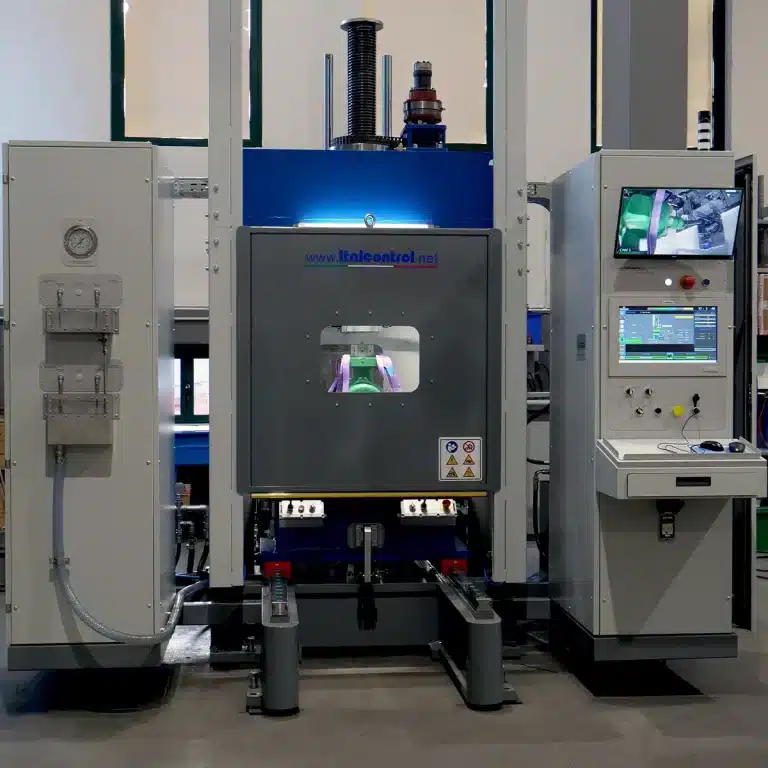

VTS SERIES
Vertical test benches
In test benches with automatic running via PLC, the strength of the tightening of the valve under test is proportionally adjusted based on the class and the diameter of the same, to avoid compression or deformation of the valve body
We are ready to create your test bench.
VTS SERIES
Vertical test benches

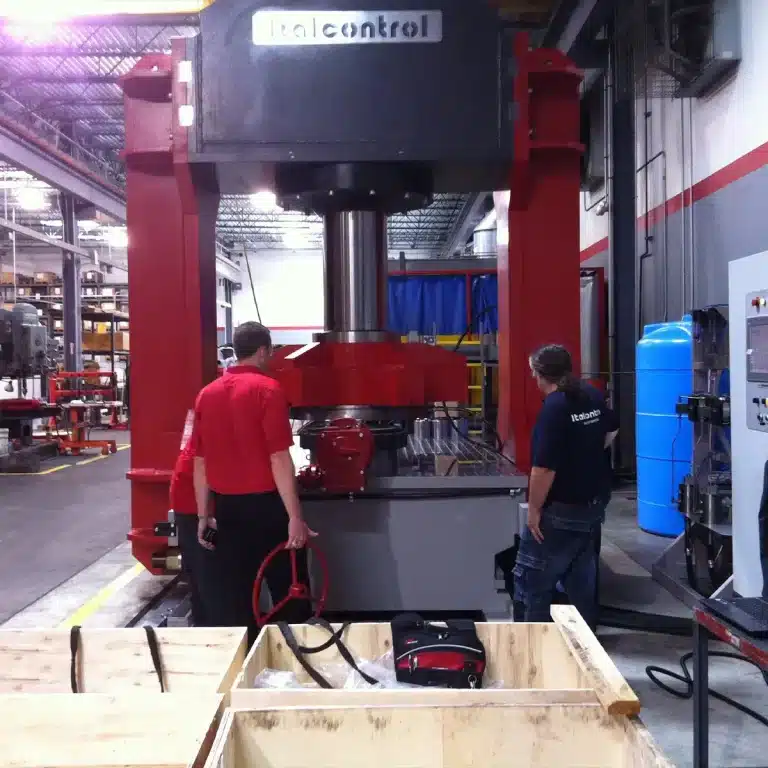

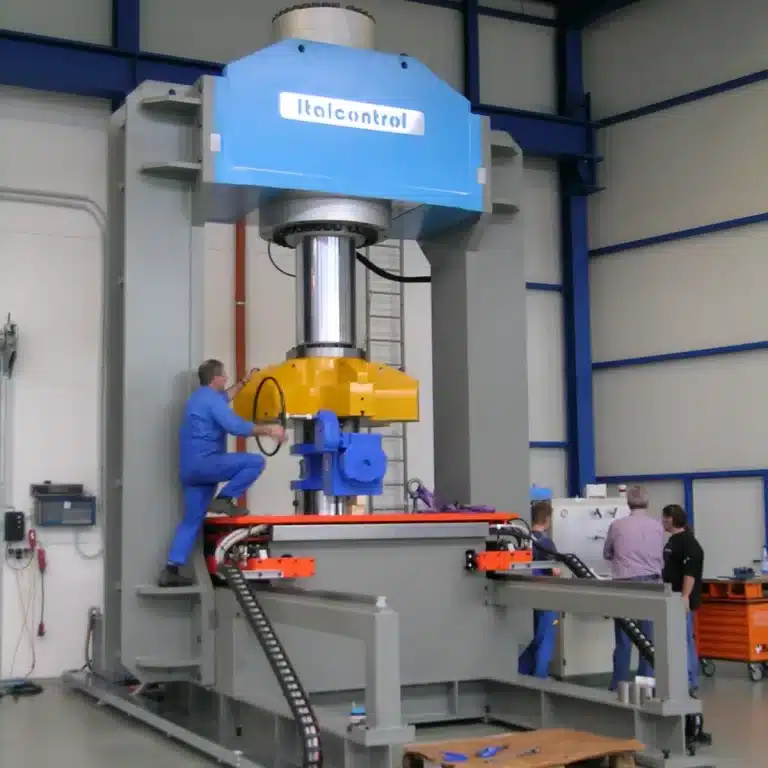

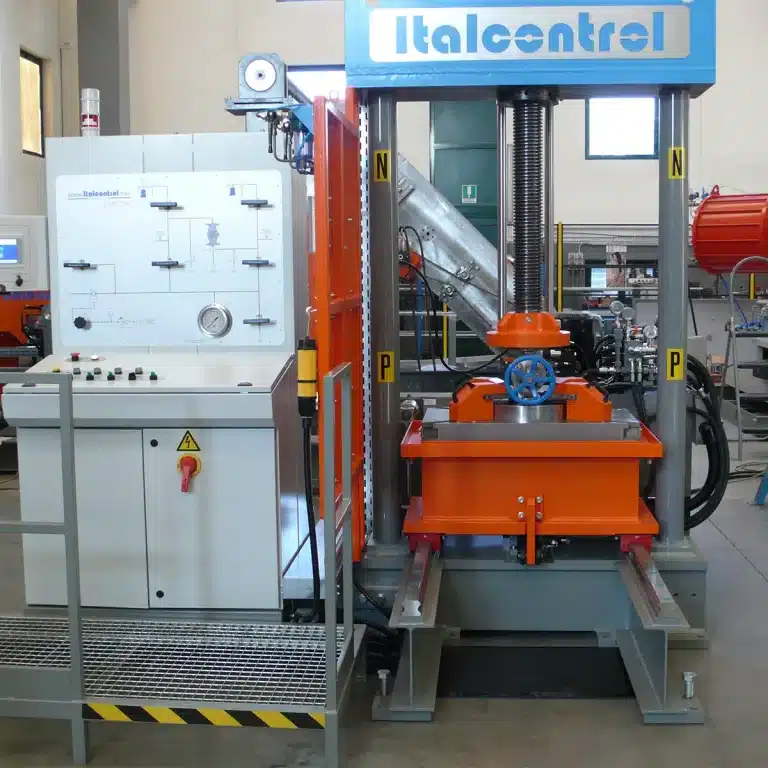

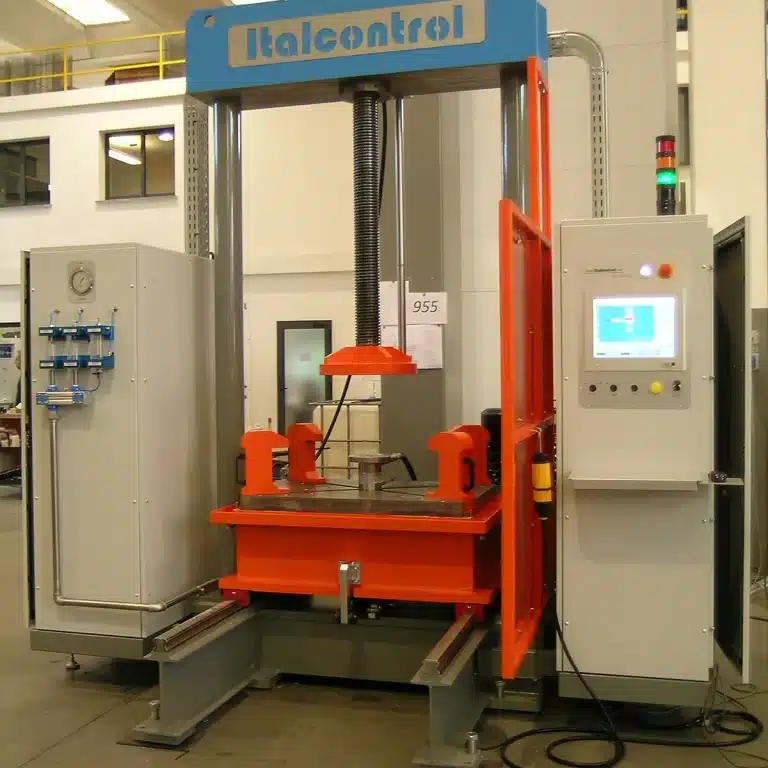

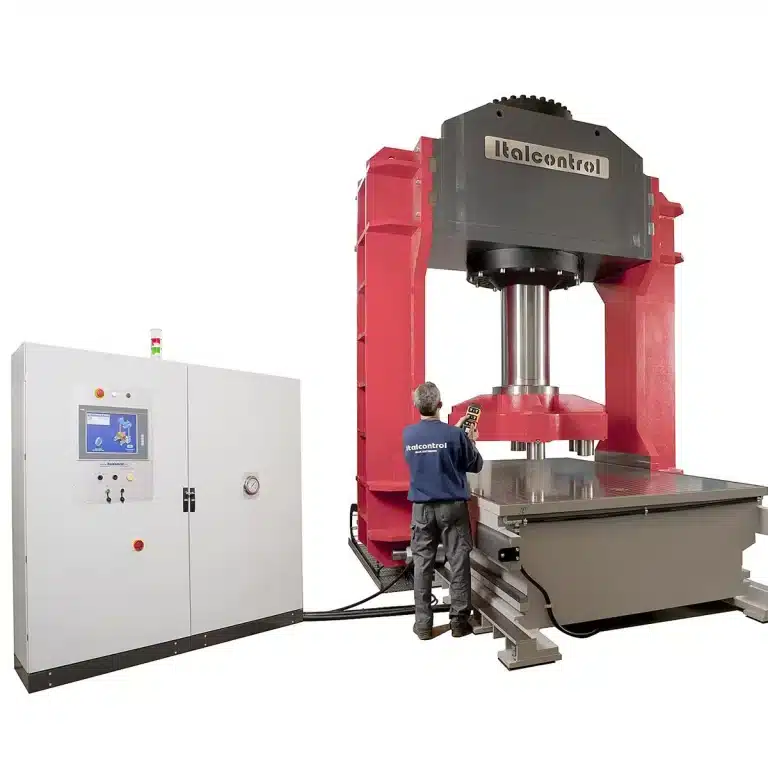

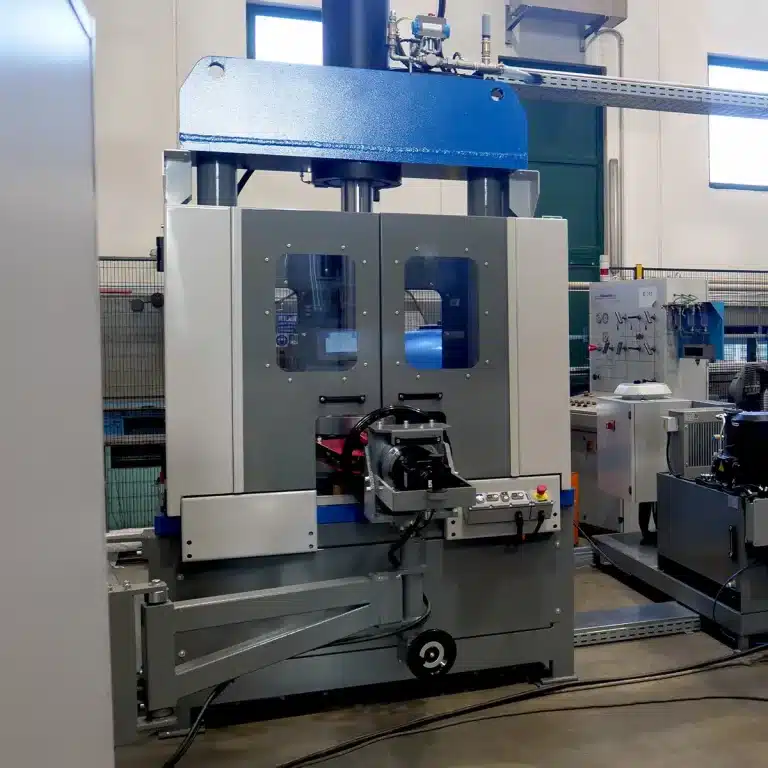

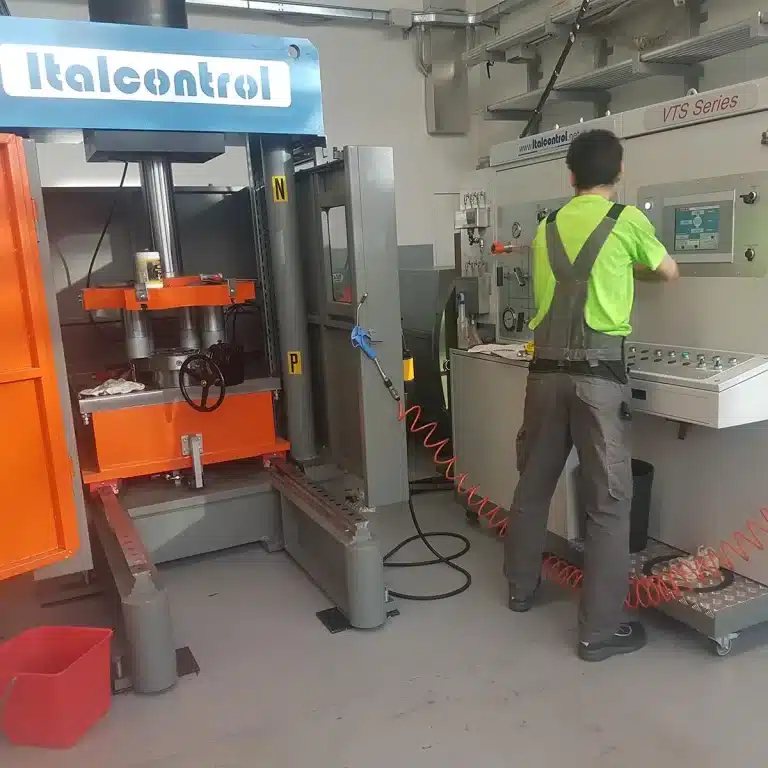

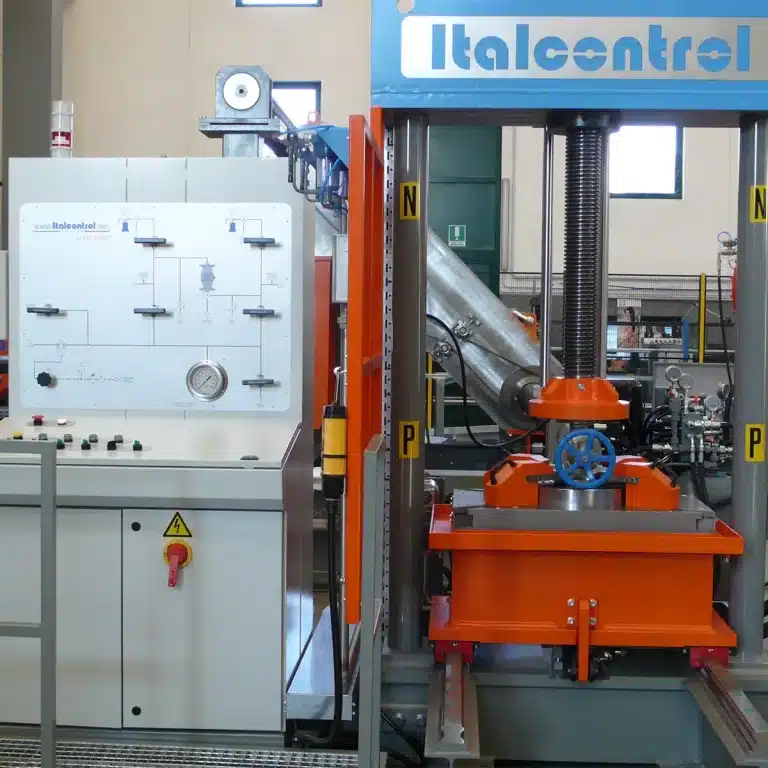

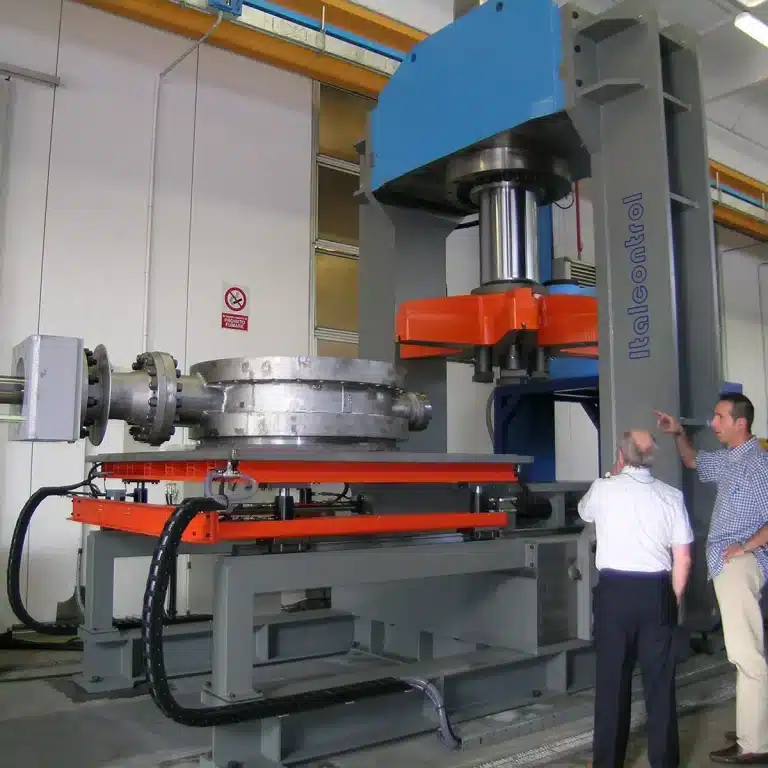

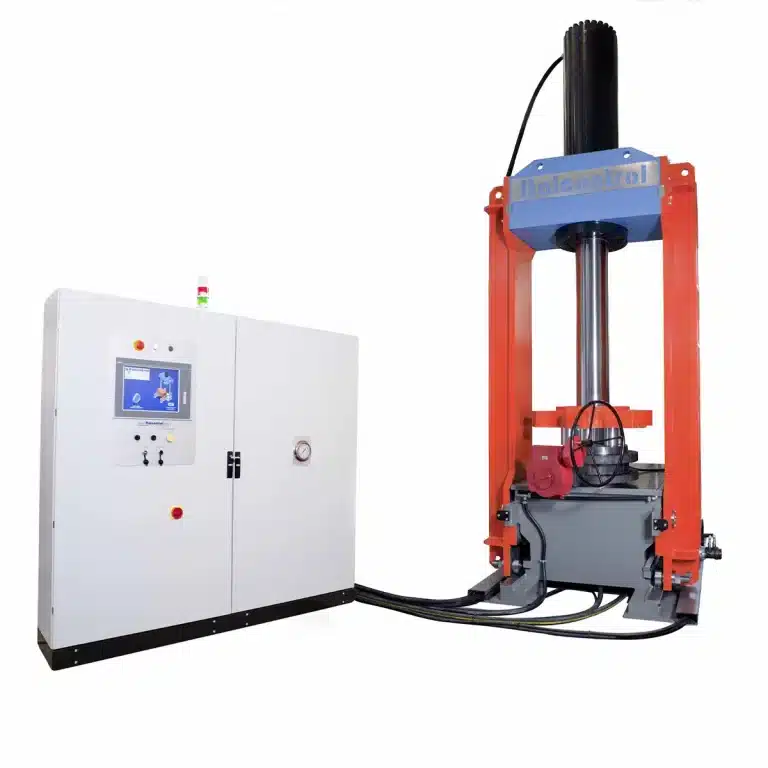

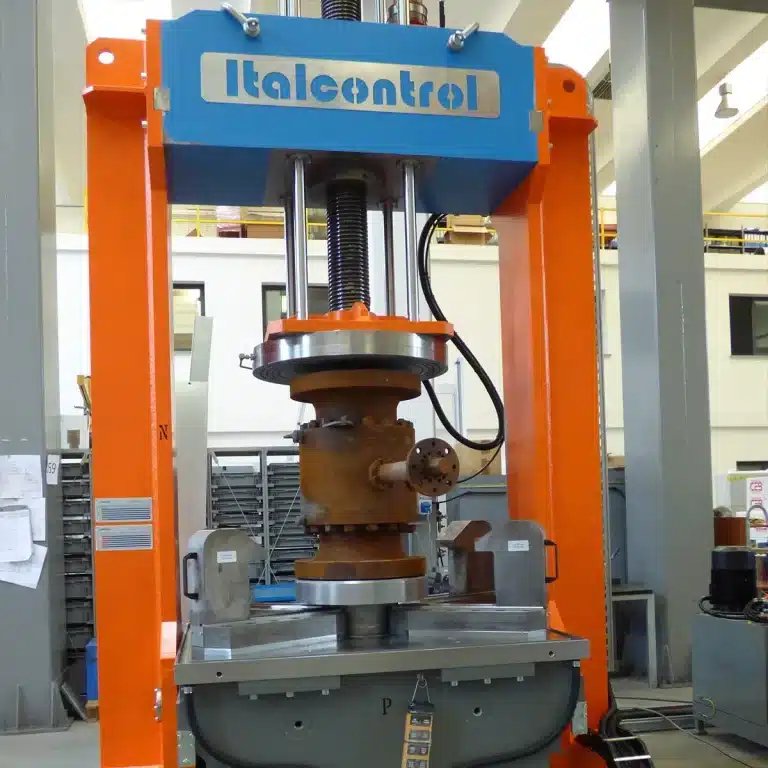

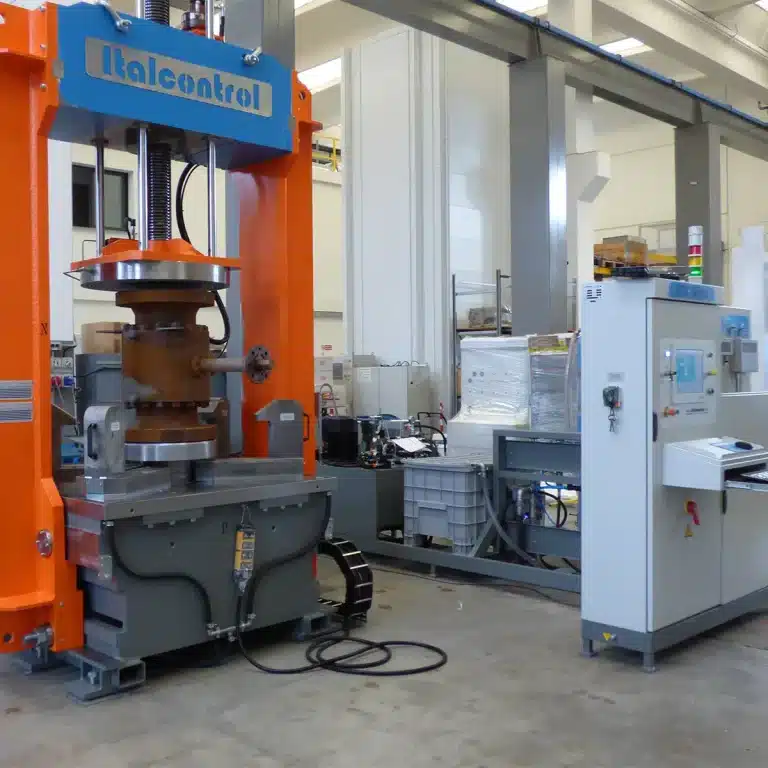

- Vertical test bench with fixing system through screw or hydraulic cylinder
- Valve range under pressure testing from 1/2” to 120”
- Maximum reaction force up to 3000 tons
- Test according to API, ANSI, DIN, BS, ISO, EN
- Hydraulic pressure test up to 4000 bars
- Gas pressure test up to 2100 bars
- Cavity line (3rd injection line)
- Analogical or electronic leakage measuring systems
- Actuator torque detection up to 150.000 Nm also for execution of automated test cycles for valve opening and closing

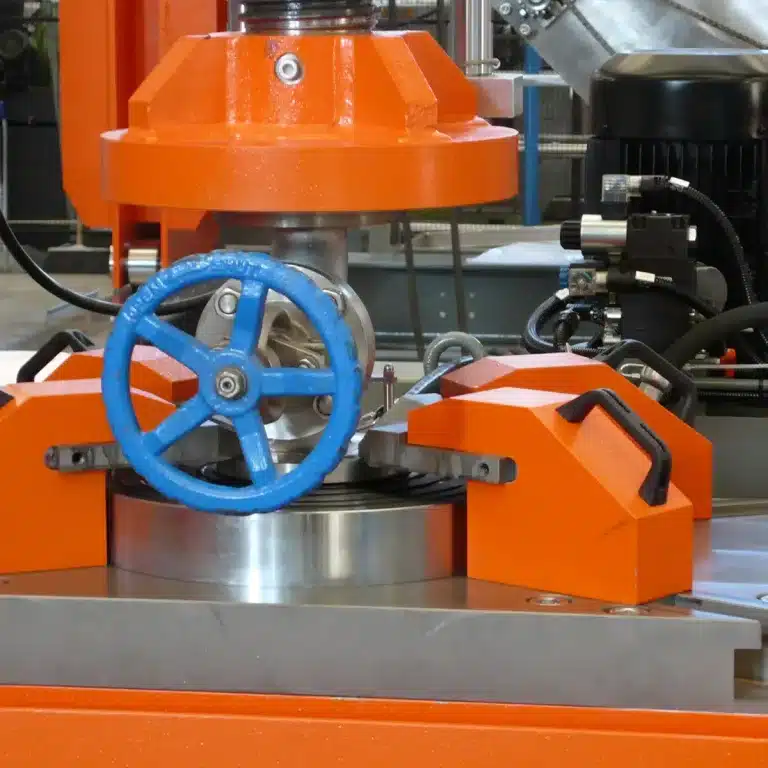

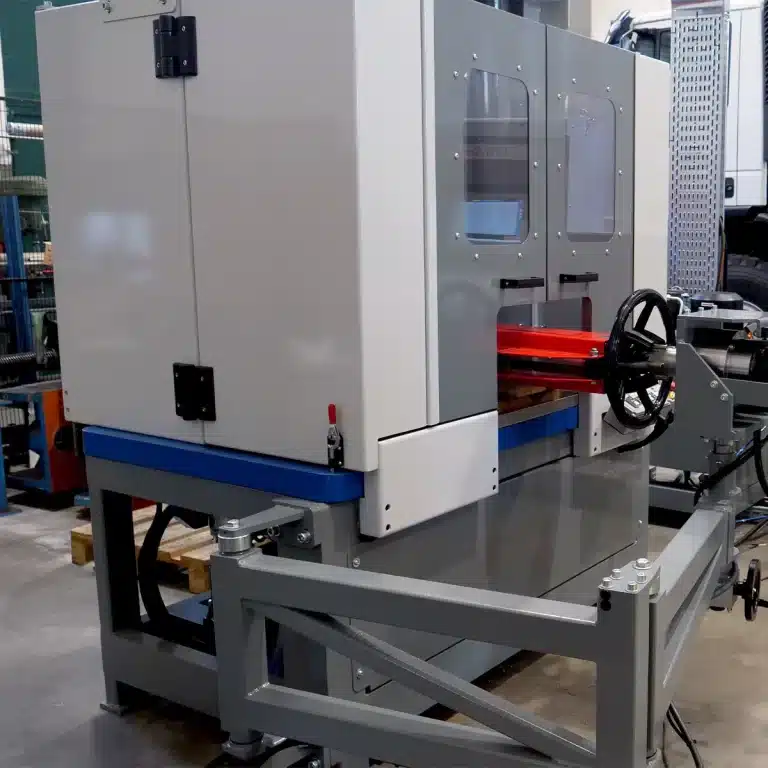

- Mobile valve support for easier loading/unloading operations
- ATEX conformity (optional)

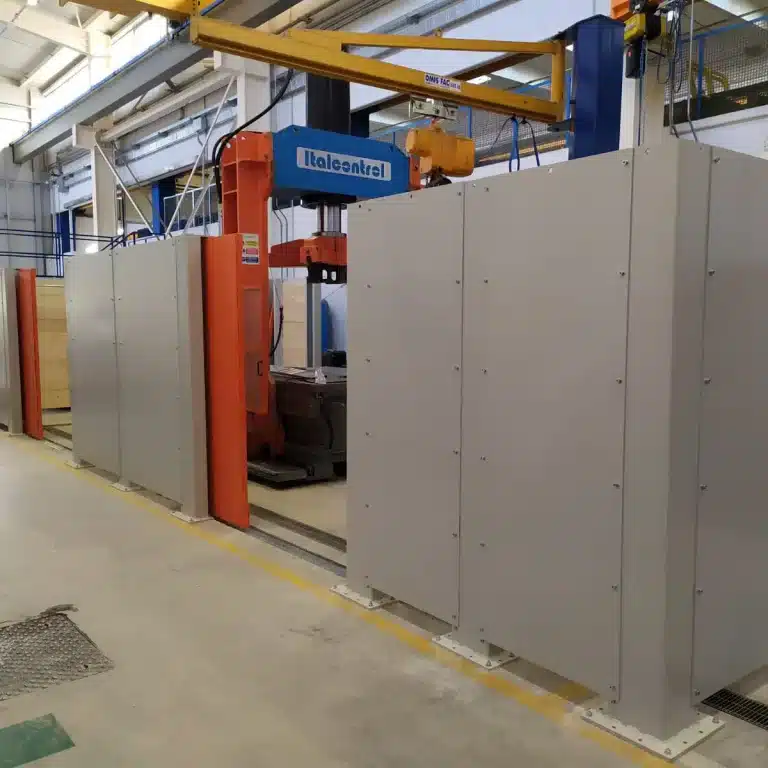

- Operator protections compliant with EN 14121 standard
- Hydrogen testing (optional)
